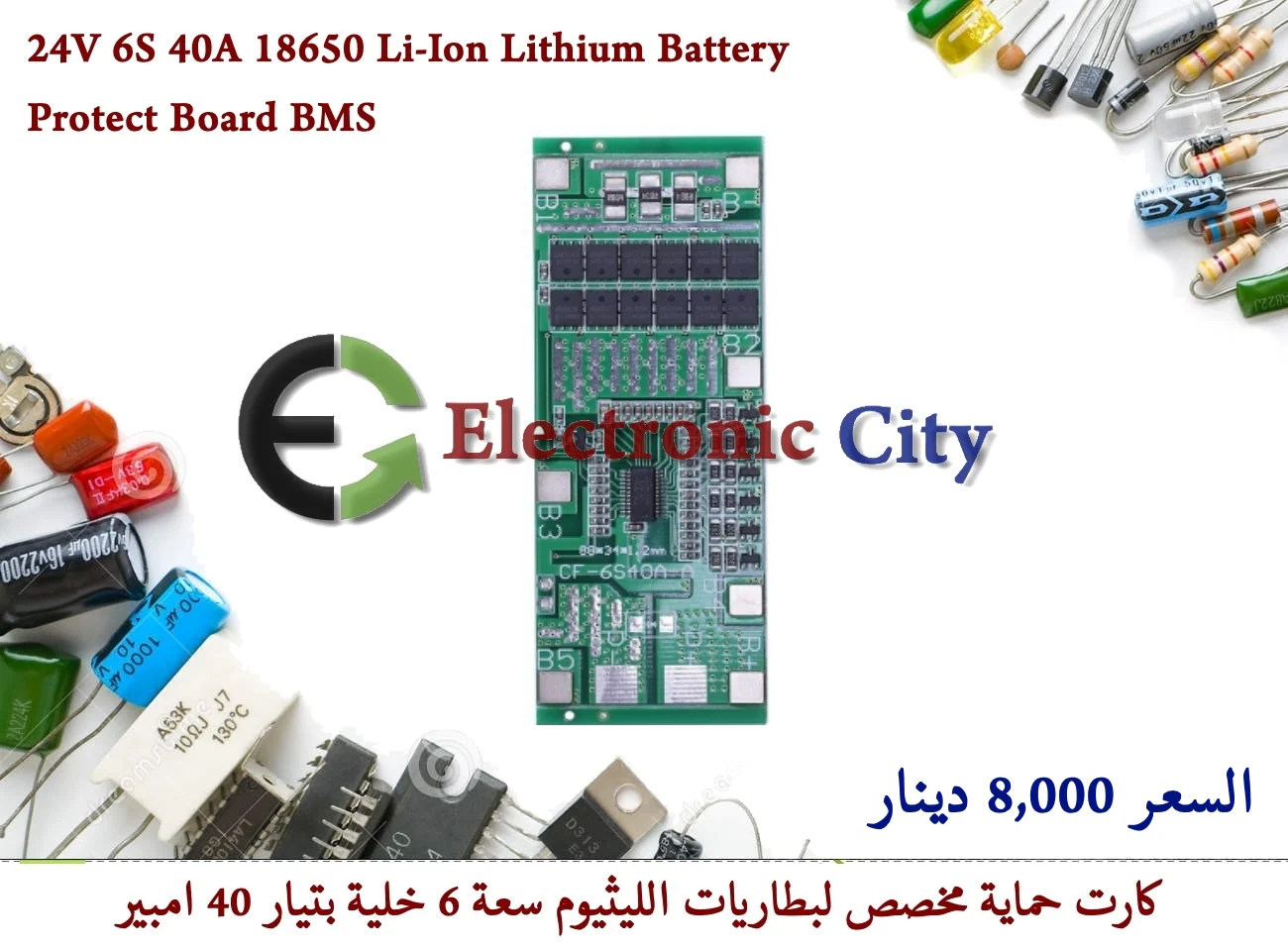

24V 6S 40A 18650 Li-Ion Lithium Battery Protect & Balance Board BMS #F10 X-HX0373A
24V 6S 40A 18650 Li-Ion Lithium Battery Protect Board BMS
كارت حماية مخصص لبطاريات الليثيوم ايون سعة 6 خلية
بتيار 40 امبير
مزود بموازن ذاتي
يتوفر بسعر 8,000 دينار
This product is 6 string 24V 6-Cell lithium battery power protection board
Split-mouth 40A discharge current With heat sink
كارت حماية مخصص لبطاريات الليثيوم ايون سعة 6 خلية
بتيار 40 امبير
مزود بموازن ذاتي
يتوفر بسعر 8,000 دينار
This product is 6 string 24V 6-Cell lithium battery power protection board
Split-mouth 40A discharge current With heat sink
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection
Color: green
Material: PCB
Maximum discharge current: 40A
Instantaneous discharge current: 70A
Charging voltage: 25.5V
Maximum charging current: 40A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 1.0±0.5S
Overcharge release voltage: 4.15±0.05V
Battery balance detection voltage: 4.125±0.025V
Battery balance release voltage: 4.125±0.05V
Battery balance current: 41±5mA
Overdischarge detection voltage: 2.7 ± 0.1V
Overdischarge detection delay: 1.0±0.5S
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 100mV
Overcurrent detection delay: 1±0.3S
Overcurrent protection current: 75±5A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: 20m
Working current: 40uA
Temperature range: -30/+80°C
Size: 88*34*2.8mm
$2.14
Original: $6.11
-65%24V 6S 40A 18650 Li-Ion Lithium Battery Protect & Balance Board BMS #F10 X-HX0373A—
$6.11
$2.14Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
24V 6S 40A 18650 Li-Ion Lithium Battery Protect Board BMS
كارت حماية مخصص لبطاريات الليثيوم ايون سعة 6 خلية
بتيار 40 امبير
مزود بموازن ذاتي
يتوفر بسعر 8,000 دينار
This product is 6 string 24V 6-Cell lithium battery power protection board
Split-mouth 40A discharge current With heat sink
كارت حماية مخصص لبطاريات الليثيوم ايون سعة 6 خلية
بتيار 40 امبير
مزود بموازن ذاتي
يتوفر بسعر 8,000 دينار
This product is 6 string 24V 6-Cell lithium battery power protection board
Split-mouth 40A discharge current With heat sink
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection
Color: green
Material: PCB
Maximum discharge current: 40A
Instantaneous discharge current: 70A
Charging voltage: 25.5V
Maximum charging current: 40A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 1.0±0.5S
Overcharge release voltage: 4.15±0.05V
Battery balance detection voltage: 4.125±0.025V
Battery balance release voltage: 4.125±0.05V
Battery balance current: 41±5mA
Overdischarge detection voltage: 2.7 ± 0.1V
Overdischarge detection delay: 1.0±0.5S
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 100mV
Overcurrent detection delay: 1±0.3S
Overcurrent protection current: 75±5A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: 20m
Working current: 40uA
Temperature range: -30/+80°C
Size: 88*34*2.8mm
