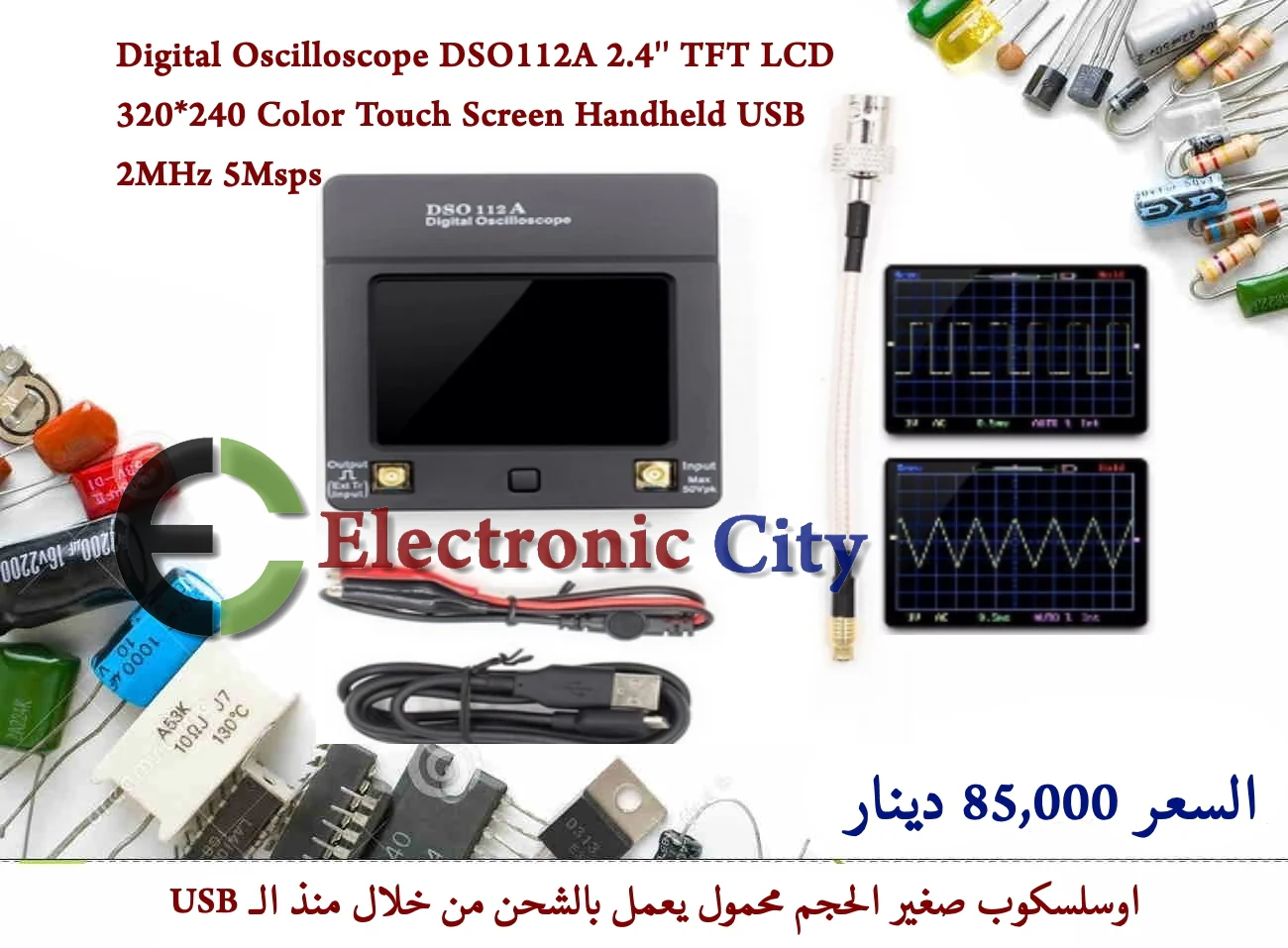

Digital Oscilloscope DSO112A 2.4'' TFT LCD 320*240 Color Touch Screen Handheld USB 2MHz 5Msps
Digital Oscilloscope DSO112A 2.4'' TFT LCD 320*240 Color Touch Screen Handheld USB 2MHz 5Msps
اوسلسكوب صغير الحجم محمول يعمل بالشحن من خلال منذ ال USB
`ذو شاشة لمس تسهل من عملية القياس
يتوفر بسعر 85,000 دينار
المواصفات التقنية للمنتج
Performance parameters:
• 2.4' TFT 320*240
• Analog Bandwidth: 0 – 2MHz
• Highest real-time sampling rate: 5Msps
• Vertical sensitivity: 2mV/Div – 20V/Div Total 12 files (inward by 1-2-5)
• Horizontal time base range: 1μs/Div – 50s/Div Total 21 files (into 1-2-5 way)
• Maximum input voltage: 50Vpk (100Vpp)
• Record length: 512/1024 points optional
• Input impedance: 1MΩ
• ADC accuracy: 8Bit
• Coupling method: DC/AC
• Trigger mode: Auto (AUTO), Normal (NORM) and Single (SING)
• Trigger edge: rising and falling
• Trigger source: internal, external
• External trigger voltage range: 0 - 15V
• The waveform display can be frozen at any time (HOLD function)
• Unique scrolling slow signal display, which can display signals continuously and continuously, unlike SCAN mode, which causes signal display to be discontinuous
• Time cursor to automatically calculate the time difference and display
• Voltage cursor for automatic calculation of voltage difference and display
• Frequency meter function: display signal frequency directly
• Voltmeter function: directly display the maximum, minimum, peak-to-peak, average, and true rms values of the waveform signal
• With 3.3V square wave test signal, the signal frequency can be set to 1Hz/10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/440Hz
• Save/recall acquisition waveforms
• Waveform data PC upload
• Battery / USB powered
• Built-in smart charger
• Size: 70 X 80 X 18 mm
اوسلسكوب صغير الحجم محمول يعمل بالشحن من خلال منذ ال USB
`ذو شاشة لمس تسهل من عملية القياس
يتوفر بسعر 85,000 دينار
المواصفات التقنية للمنتج
Performance parameters:
• 2.4' TFT 320*240
• Analog Bandwidth: 0 – 2MHz
• Highest real-time sampling rate: 5Msps
• Vertical sensitivity: 2mV/Div – 20V/Div Total 12 files (inward by 1-2-5)
• Horizontal time base range: 1μs/Div – 50s/Div Total 21 files (into 1-2-5 way)
• Maximum input voltage: 50Vpk (100Vpp)
• Record length: 512/1024 points optional
• Input impedance: 1MΩ
• ADC accuracy: 8Bit
• Coupling method: DC/AC
• Trigger mode: Auto (AUTO), Normal (NORM) and Single (SING)
• Trigger edge: rising and falling
• Trigger source: internal, external
• External trigger voltage range: 0 - 15V
• The waveform display can be frozen at any time (HOLD function)
• Unique scrolling slow signal display, which can display signals continuously and continuously, unlike SCAN mode, which causes signal display to be discontinuous
• Time cursor to automatically calculate the time difference and display
• Voltage cursor for automatic calculation of voltage difference and display
• Frequency meter function: display signal frequency directly
• Voltmeter function: directly display the maximum, minimum, peak-to-peak, average, and true rms values of the waveform signal
• With 3.3V square wave test signal, the signal frequency can be set to 1Hz/10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/440Hz
• Save/recall acquisition waveforms
• Waveform data PC upload
• Battery / USB powered
• Built-in smart charger
• Size: 70 X 80 X 18 mm
$22.73
Original: $64.94
-65%Digital Oscilloscope DSO112A 2.4'' TFT LCD 320*240 Color Touch Screen Handheld USB 2MHz 5Msps—
$64.94
$22.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Digital Oscilloscope DSO112A 2.4'' TFT LCD 320*240 Color Touch Screen Handheld USB 2MHz 5Msps
