MINI ESP32-C3 development board #S5 1226247

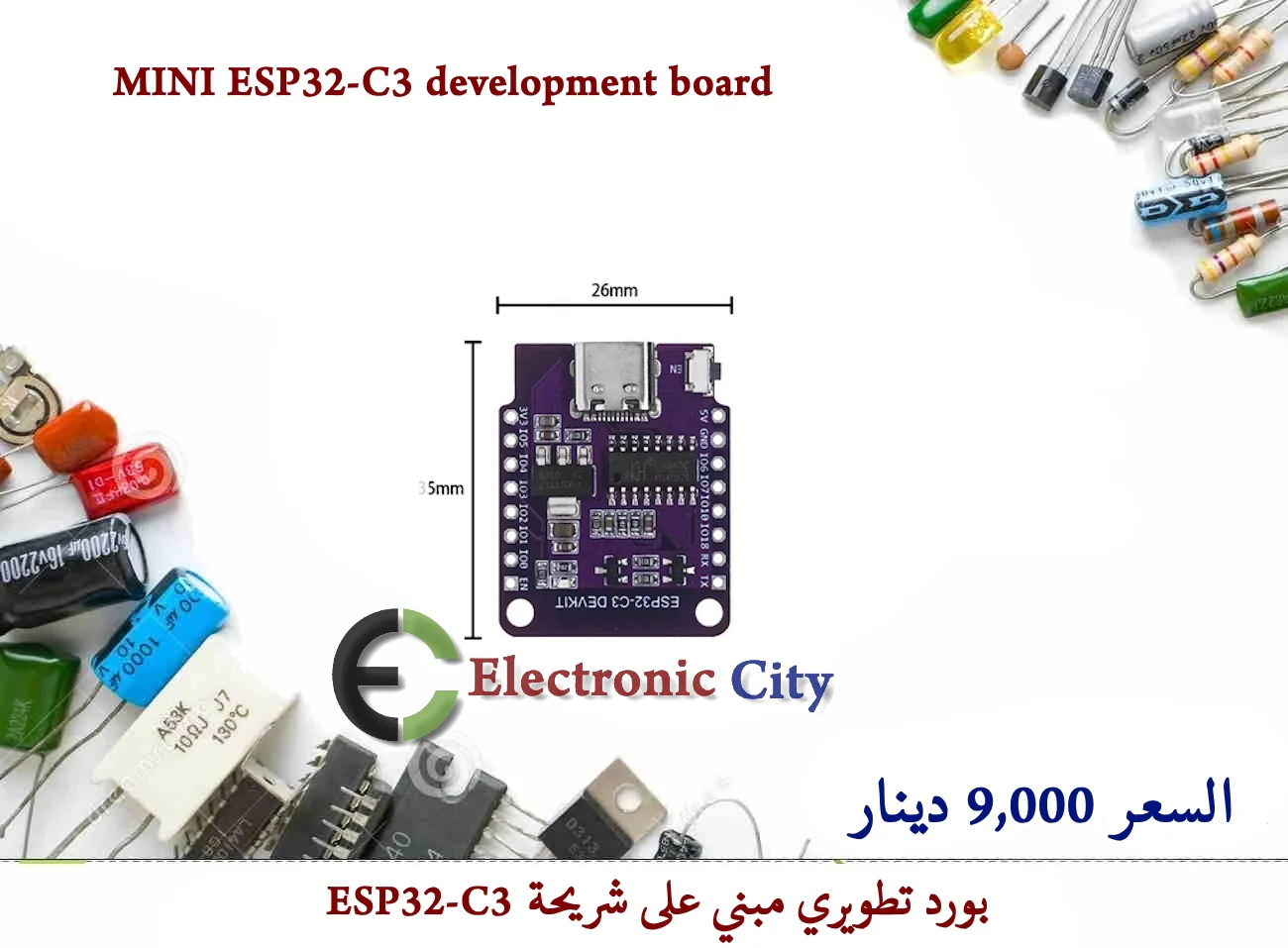

MINI ESP32-C3 development board
بورد تطويري مبني على شريحة ESP32-C3
مزود بمنفذ Type-C
يتوفر بسعر 9,000 دينار
Description
● Supports IEEE 802.11 b/g/n protocol
Operating frequency range: 2400~2483.5 MHz
Supports 20MHz and 40MHz bandwidth in the 2.4GHz frequency band
Supports 1T1R mode with a data rate of up to 150 Mbps
● Wireless Multimedia (WMM)
● Frame aggregation (TXRX A-MPDU, TX/RX A-MSDU)
● Immediate Block ACK
Fragmentation and defragmentation
Transmission opportunity (TXOP)
Beacon automatic monitoring (hardware TSF)
4x virtual Wi Fi interface
● Simultaneously supporting Infrastructure BSS
Station mode, SofAP mode, Station+SoftAP mode
Equation and hybrid mode
Please note that when the ESP32-C3 series is scanned in Station mode,
The SoftAP channel will change simultaneously
● Antenna diversity
● 802.11 mc FTM
Bluetooth Field
Low power Bluetooth LE: Bluetooth 5 Bluetooth
Mesh
● Speed support of 125 Kbps, 500 Kbps, 1 Mbps. 2 Mbps
Advertising extensions
● Multiple Advertisement Sets
Channel Selection Algorithm # 2
peripheral
GPIO, SPI, UART I2C, I2S. Infrared remote control (remote
Control peripheral) LED PWM controllers - Universal DMA
Controller, TWA8 controller (compatible with ISO 11898-1) USB
Serial port/JTAG controller, temperature sensor, SAR analog-to-digital conversion
Module integrated components
40 MHz integrated crystal oscillator
Antenna selection
● On board PCB antenna (ESP32-C3-MINI-1)
Connect the external antenna (ESP32-C3-MINI-1U) through a connector
Working conditions
Working voltage/power supply voltage: 3.0-3.6V
● Working environment temperature:
-85 ° C module: -40~85 ° C
-105 ° C module: -40~105 ° C
