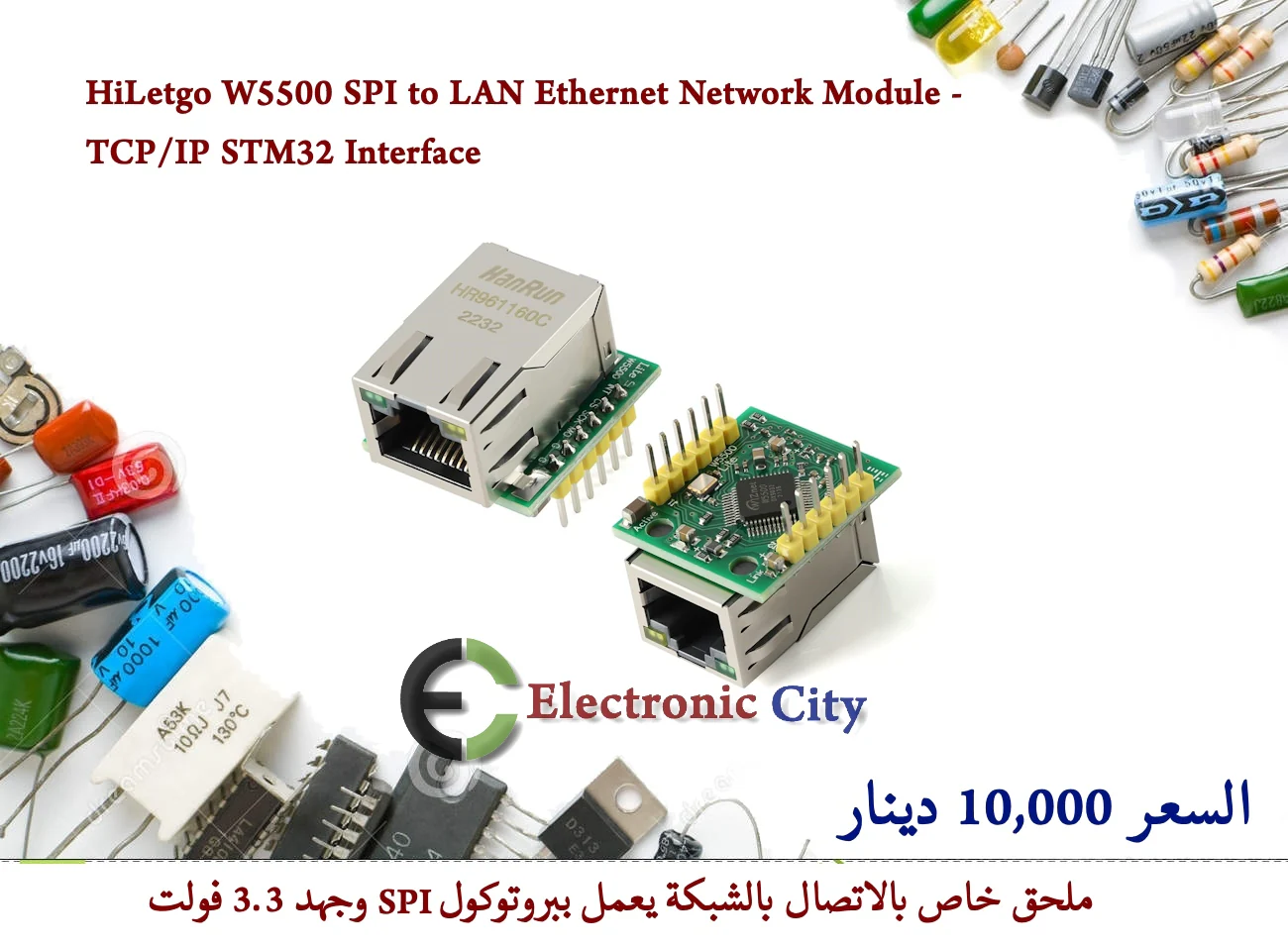

W5500 SPI to LAN Ethernet Network Module - TCP IP STM32 Interface #Q11 012630
W5500 SPI to LAN Ethernet Network Module - TCP IP STM32 Interface
This is a compact sized network module (Ethernet module) based on the Wiznet W5500 chip. It provides an easy way to connect your module to the Ethernet-based local network and internet with a TCP/IP interface. With this module with RJ-45 port you can build a web server. It can be used as a server or as a client.
Product Technical Details:
- W5500 Plug-in Ethernet Network Module.
- Embedded 10BaseT/100BaseTX Ethernet physical layer (PHY).
- Supply voltage: 3.3V@200mA.
- Logic Level: 3.3V.
- Usable without H/W design for W5500 & Transformer & RJ-45.
- Fast evaluation for W5500 & MCU in the target board.
- Support high speed 80MHz SPI interface.
- Support 8 hardware sockets.
- Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol.
- Support power down mode and Wake-on-LAN function.
Original: $7.64
-65%$7.64
$2.67Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
W5500 SPI to LAN Ethernet Network Module - TCP IP STM32 Interface
This is a compact sized network module (Ethernet module) based on the Wiznet W5500 chip. It provides an easy way to connect your module to the Ethernet-based local network and internet with a TCP/IP interface. With this module with RJ-45 port you can build a web server. It can be used as a server or as a client.
Product Technical Details:
- W5500 Plug-in Ethernet Network Module.
- Embedded 10BaseT/100BaseTX Ethernet physical layer (PHY).
- Supply voltage: 3.3V@200mA.
- Logic Level: 3.3V.
- Usable without H/W design for W5500 & Transformer & RJ-45.
- Fast evaluation for W5500 & MCU in the target board.
- Support high speed 80MHz SPI interface.
- Support 8 hardware sockets.
- Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol.
- Support power down mode and Wake-on-LAN function.
