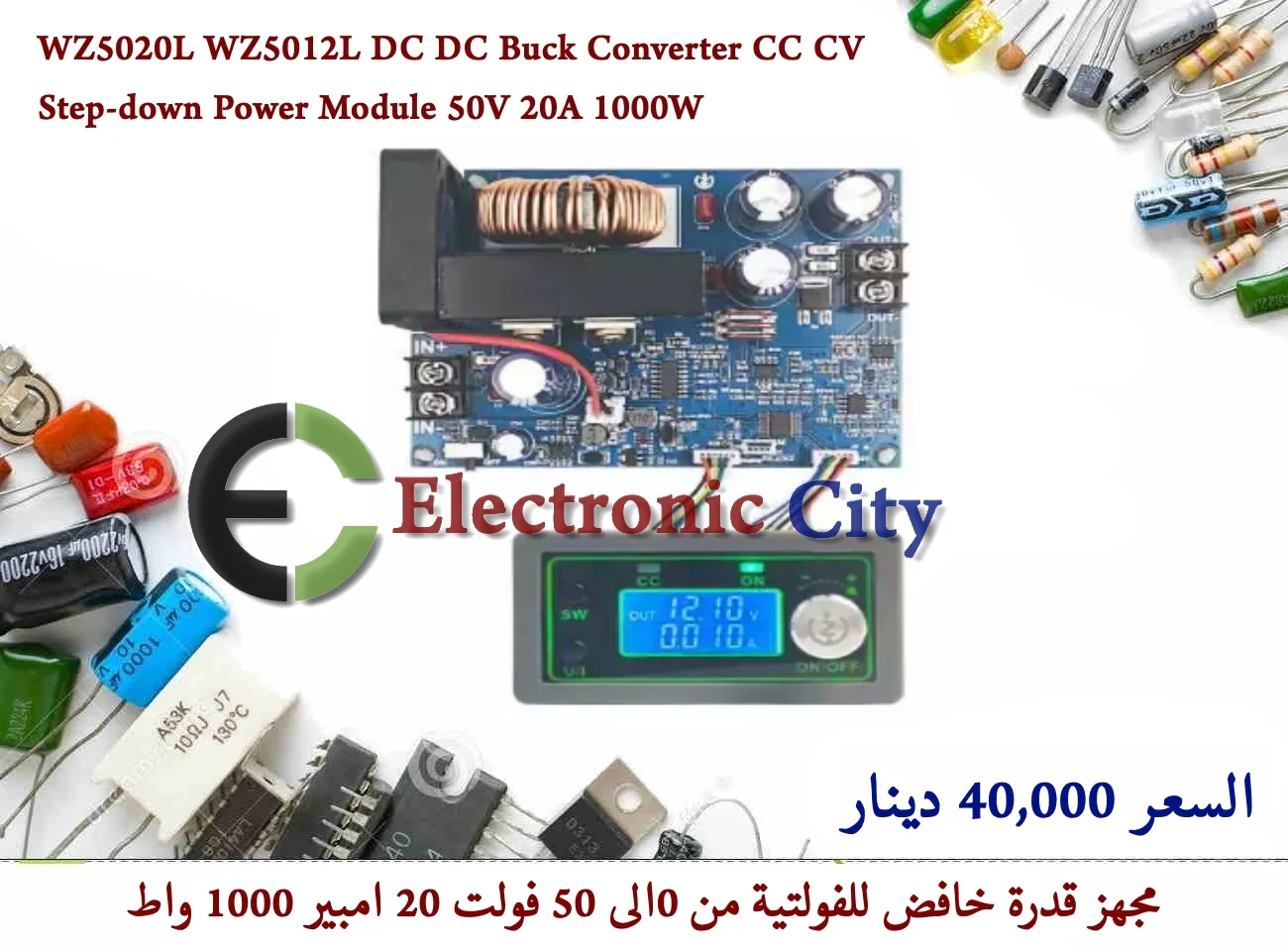

WZ5020L WZ5012L DC DC Buck Converter CC CV Step-down Power Module 50V 20A 1000W #N5 WZ5020L XJ0069

WZ5020L WZ5012L DC DC Buck Converter CC CV Step-down Power Module 50V 20A 1000W #N5 WZ5020L XJ0069

WZ5020L WZ5012L DC DC Buck Converter CC CV Step-down Power Module 50V 20A 1000W


مجهز قدرة خافض للفولتية بقدرة 1000 واط
مدى الفولتية من 0 الى 50 فولت
مدى التيار من 0 الى 20 امبير
يحتوي على خاصية الحماية من الشورت سيركت والاوفر لود وارتفاع الحرارة


يتوفر بسعر 40,000 دينار


المواصفات التقنية للمنتج
Input voltage range:6-55.00V
Input voltage resolution:0.01V
Output voltage range:0-50.00V
Output voltage resolution:0.01V
Output current range:0-20.00A
Output current resolution:0.01A
Output power range:0-1000W
Input voltage accuracy:±(1%+5)
Output voltage accuracy:±(0.3%+5)
Output current accuracy:±(0.5%+5)
Typical value of output ripple:150mV Peak value
Normal operating temperature range:-10℃~40℃
Capacity measurement range:0-999.9AH
Statistical error of capacity energy:±2%
Statistical time range:0-100 hour
Depressurization mode:differential pressure >0.05%+1V
The weight of nude: 200g
Including packing:242g
Product size: panel79X43X42mm
main board:106x76x40mm




$30.56
WZ5020L WZ5012L DC DC Buck Converter CC CV Step-down Power Module 50V 20A 1000W #N5 WZ5020L XJ0069—
$30.56

Product Information

Shipping & Returns

Description

WZ5020L WZ5012L DC DC Buck Converter CC CV Step-down Power Module 50V 20A 1000W


مجهز قدرة خافض للفولتية بقدرة 1000 واط
مدى الفولتية من 0 الى 50 فولت
مدى التيار من 0 الى 20 امبير
يحتوي على خاصية الحماية من الشورت سيركت والاوفر لود وارتفاع الحرارة


يتوفر بسعر 40,000 دينار


المواصفات التقنية للمنتج
Input voltage range:6-55.00V
Input voltage resolution:0.01V
Output voltage range:0-50.00V
Output voltage resolution:0.01V
Output current range:0-20.00A
Output current resolution:0.01A
Output power range:0-1000W
Input voltage accuracy:±(1%+5)
Output voltage accuracy:±(0.3%+5)
Output current accuracy:±(0.5%+5)
Typical value of output ripple:150mV Peak value
Normal operating temperature range:-10℃~40℃
Capacity measurement range:0-999.9AH
Statistical error of capacity energy:±2%
Statistical time range:0-100 hour
Depressurization mode:differential pressure >0.05%+1V
The weight of nude: 200g
Including packing:242g
Product size: panel79X43X42mm
main board:106x76x40mm
